Board Type:PCB Gate Drive
Model Number:1336-BDB-SP18D
Operating Voltage Range:100V to 500V
Current Handling Capacity:20A
Switching Frequency:20kHz to 50kHz
Insulation Resistance:≥10MΩ
Operating Temperature Range:-40°C to +85°C
Input/Output Signal Type:Digital

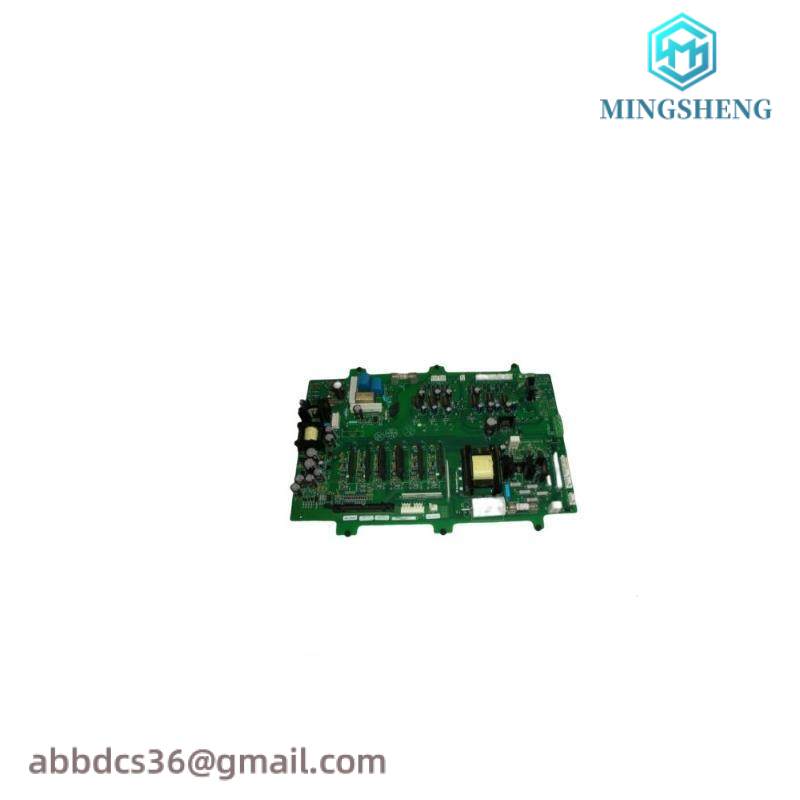

Engineered with precision components, the AB 1336-BDB-SP18D PCB gate drive board is tailored for applications requiring stringent control and high efficiency.
Featuring a robust FR-4 base and high insulation resistance, this board ensures reliable operation under extreme environmental conditions, making it suitable for industrial environments.
Capable of handling up to 400V DC operating voltage and delivering a peak current of 18A, the AB 1336-BDB-SP18D provides ample power for demanding control tasks.
With an extensive temperature range of -40°C to +85°C, this board maintains optimal performance across various operational climates, ensuring continuous reliability in diverse industrial settings.
Equipped with a 12-pin DIP socket for easy connection, the AB 1336-BDB-SP18D offers flexible integration options, simplifying the assembly process and enhancing system compatibility.
