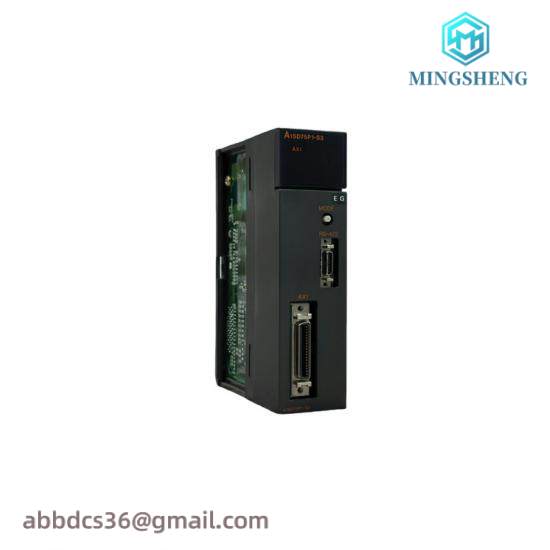

Mitsubishi A1SD75P1-S3 Precision Positioning Module

Model:A1SD75P1-S3

Brand:Mitsubishi

Type:Positioning Module

Power Supply Voltage:DC24V

Current Consumption:1.5A

Control Modes:[“PTP”,”Path”,”Speed”,”Speed-Position Switching”]

Output Type:Transistor

Interpolation:Linear/Circular/Helical

Maximum Axes:4

Pulse Frequency:200KHz

Connector Type:2 x 40-pin

Mounting Mode:Backplane/Rack

    The Mitsubishi A1SD75P1-S3 Precision Positioning Module is designed to provide unparalleled precision and reliability in high-demand industrial applications. This state-of-the-art module is part of the esteemed MELSEC iQ-R Series, renowned for its robust performance and efficiency.

    With its 4-axis support, the A1SD75P1-S3 enables smooth and controlled movements across multiple directions, significantly improving the overall productivity and accuracy of automated systems. Its advanced control systems allow for seamless integration into complex machinery, ensuring seamless operation and minimal downtime.

    Featuring DC 24V power supply and a maximum output current of 3A, this module ensures stable operation even under challenging conditions. The linear, circular, and helical interpolation capabilities make it adaptable to a wide range of applications, from simple point-to-point movements to intricate path control tasks.

    Built with high-quality materials, the A1SD75P1-S3 Precision Positioning Module boasts exceptional durability and longevity. Its compact design allows for easy installation within various systems, while the robust transistor outputs ensure precise signal transmission without interference.

    This module is ideal for manufacturers seeking to optimize their production lines, enhance operational efficiency, and achieve higher quality standards. Its integration into existing systems is straightforward, thanks to the standard 2 x 40-pin connectors and backplane/rack mounting options, making it a versatile addition to any industrial automation setup.
